S-2240 Bi-color SMD On-camera LED light

›  60pcs ultra bright long-life LEDs

›  Surface mounted LED technology

›  120°(half-declined 68°) wide beam angle

›  3200K-5600K continuously adjustable

›  12W power, 300Lux @ 1 meter center

›  10%-100% flick-free dimming

›  Super high CRI Ra≥93, TLCI≥97

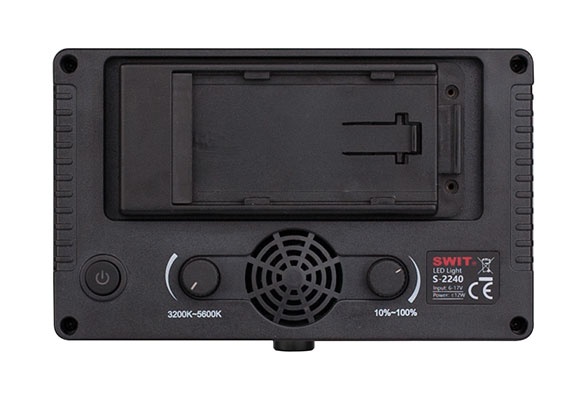

›  Interchangeable various DV battery plates

›  Support DC 6-17V input from D-tap

›  Provide ball head, diffuser, and bag


Features

60pcs Surface Mounted LEDs

Area light, soft and glareless

S-2240 is an on-camera LED news light, with surface mounted LED technology, includes 60pcs ultra bright SMD LEDs, suitable for wide area on-camera lighting. The provided diffuser cover generates an equally spread, glareless area light for close interview and professional film lighting.



Super wide beam angle

LED 120°; Half-declined at 68°

The SMD LED of S-2240 has 120° wide beam angle, and generates an equally spread, wider area light comparing to traditional DIP LED bulbs.
Take center illuminance as 100% brightness, when declined to 50% at the edge, the “half-declined” beam angle can still reach to 68°, which means the light is equally spread onto the whole environment, instead of just concentrated at center.



Bi-color temperature

3200K-5600K continuously adjustable

Every SMD LED of S-2240 is packaged with 5600K and 3200K LEDs, and the output color temperature can be continuously adjustable between 3200K and 5600K. The bi-color SMD LED is more reliable and has better consistency on color temperature.

High Color Reveal Ability

CRI Ra≥93; TLCI≥97

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2240 offers the super high CRI at 93 and TLCI at 97, and will not lose the object original colors.

Magnetic Diffuser Cover

With organic light diffusion agent

S-2240 provides a diffuser cover, to be attached on the front of LEDs by magnet. The diffuser cover adopts the PC material with organic light diffusion agent, which increased the transmission of light, and provides a soft, glareless and comfortable lighting effect.

6-17V DC Input

Various DV plates / D-tap cable

S-2240 accepts 6-17V wide voltage input, so you can get DC power from V-mount / Gold mount batteries, or DV batteries. S-2240 also supports SWIT S-7004 series snap-on type DV battery plates to install, and select various types of DV battery to power.

Interchangeable DV plates

You can select the following DV plates:

S-7004F
SONY NP-F970/770
S-7004U
SONY BP-U60/U30
S-7004D
Panasonic CGA-D54/D28 VW-VBD58 AG-VBR59
S-7004B
Panasonic VW-VBG6
S-7004J
JVC BN-V428U
S-7004V
JVC BN-VF823
S-7004I
SSL-JVC50
S-7004C
Canon BP-945/970G
S-7004E
Canon LP-E6




LED

60 pcs SMD LEDs

Illuminance

300Lux @ 1 meter

Beam Angle

LED 120°; Half decline at 68°

Color temperature

3200K±200K ~ 5600K±300K

Color performance

CRI Ra≥93; TLCI≥97

Working voltage

DC 6V~17V

Power consumption

Approx. 12W

Dimensions

143(W)×91(H)×34(D)mm

weight

Net 166g; With package 0.7kg
Basic Package

MSRP

MSRP

MSRP

  • Bag

  • Optional purchase S-7004 battery plate (U/F/D/B/C/V/I/E selection)

  • Cold shoe to 1/4 Ball head

  • Magnetic Diffuser

  • S-7104 D-tap to Pole tap cable

  • S-7004F

    SONY NP-F DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004U

    SONY BP-U DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004D

    Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004B

    Panasonic VBG DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004C

    Canon BP DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004E

    Canon DSLR Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004i

    JVC SSL DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-7004V

    JVC BN-VF DV Battery Mount Plate, Snap-on type installation, quick release and exchangeable.
  • S-2070

    COB LED On-camera Light

    COB LED in smaller size for Camcorder, low power consumption, brighter, wider beam angle, non-glaring; 1100Lux, 5600K / 3200K filter; DV batteries attachable.

  • S-2240

    Bi-color SMD On-camera LED light

    60pcs ultra bright SMD LEDs, 12W power, equally spread surface light, 3200K-5600K adjustable, various types DV battery plates install.

  • S-7108

    Pole-tap to Pole-tap DC Cable

    DC cable with both ends of 5.5mm Pole-tap connector

  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap
