PL-E90L 90W Bi-color Long Ratio LED Panel

›  0.5×3 feet long ratio panel light

›  480pcs edge mounted SMD-LEDs

›  Unique 90° light guide technology

›  90W power, 2000Lux @ 1meter

›  0-100% flick-free dimming

›  2700K-6500K continuously adjustable

›  CRI Ra 99, TLCI 99

›  DMX512 control and interaction control

›  USB power out for wireless DMX receiver

›  LCD display color, dimmer, DMX and battery info

›  DC 11-36V wide input voltage

›  Power by V-mount or Gold mount battery

›  With 2-leaf metal barn doors

›  Provide portable 3-light interview kit


90W Long Ratio LED Panel

PL-E90L is a 0.5×3 feet size long aspect ratio light for soft vertical lighting of people. The PL-E family slim size is portable for interview kit application.


21mm Slim Size

Side Mounted SMD-LED

PL-E90L has SMD-LEDs side mounted on the inner edge of the frame, and with SWIT innovative laser dots 90° reflection board, the light outputs high efficiant bright, soft and even beam to wrap around objects.
The side mounted LEDs greatly reduce the light thickness. It’ s only 21mm, slim and portable for field application.


90W, 2000 Lux @ 1 meter

2700K-6500K Continuously Adjust

PL-E90L mixed with 90W 2700K LEDs and 90W 6500K LEDs, outputs 90W 2200Lux at 1 meter high intensity and any color temperature between 2700K to 6500K, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

CRI 99, TLCI 99

PL-E90L adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 99, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

Control Panel

The rear control panel supports DMX512 in and out, USB power out for wireless DMX adaptor, DC 11-36V wide input. The LCD screen displays dimmer, color temperature, DMX address and power status.

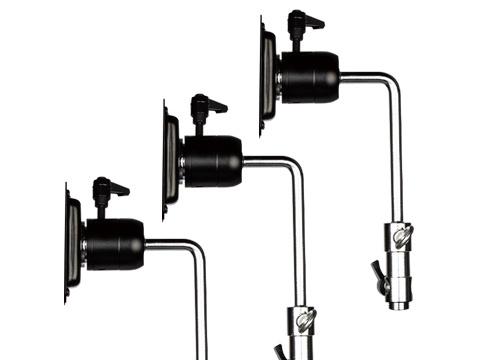

Rotatable Lighting Angle

PL-E90L provides a light stand connector with 360° rotatable and 180° tiltable.

2-leaf Barn Doors

PL-E90L installed with 2-leaf metal barn doors and also could be removed easily by 4 screws.

Single Light Package

The single light package includes:
1x PL-E90L light with barndoor
1x Light stand connector
1x AC-DC adaptor
1x Carrying bag

3-Light Kit Package

The 3-light kit package includes:
3x PL-E90L lights with barndoor
3x Light stand connectors
3x AC-DC adaptors
3x Light stands
1x Trolley case



480pcs SMD LEDs


2000Lux @ 1m

Beam angle


Color Temperature








Working voltage




Lighting area



Net 4.9kg;

Single light package 8.4kg

3-light package 37kg

Basic Package

Single Light Package


3-Light Kit Package



  • PL-E90L with barndoor ×1

  • AC-DC Adaptor ×1

  • Light stand connector ×1

  • Carrying bag

  • AC-DC Adaptor x3

  • PL-E90L with barndoor ×3

  • Trolley Case

  • Light stand x3

  • Light stand connector ×3

  • PL-E90D

    90W Portable Bi-color SMD Panel LED light

    480pcs bright SMD LEDs, 90W, DMX control, 2200Lux@1m bright, 2700K-6500K adjustable, Super thin and portable.

  • PL-E90

    90W Portable Bi-color SMD Panel LED light

    480pcs bright SMD LEDs, equally spread surface light, 90W, 2200Lux@1m bright, 2700K-6500K adjustable, Super thin and portable.

  • PL-E90P

    90W IP54 waterproof SMD Panel LED Light

    480pcs SMD LEDs, DMX control, 2200Lux@1m bright, 2700K-6500K
