MINO-S140 140Wh Pocket V-mount Battery Pack

› Tiny V-mount battery, Pocket fit

› Support RED Raptor install

› 140Wh/9.7Ah high capacity

› 150W/12A constant high load

› 1x D-tap output & charging input

› 1x USB-A 5V/2A output

› 1x USB-C 48W input & 65W output

› 4-step LED power indicator

› Power info for both SONY & RED

› Wire-Free internal technic

› Multiple circuit protections

Features

Tiny Size 140Wh Battery

The smallest 140Wh V-mount battery you’ve ever seen!

MINO-S140 is a pocket fit size large capacity battery with 65W USB-C socket, for cameras, monitors, accessories, tablets, laptops and all kinds of devices in the filmset.

150W/12A High Load

MINO-S140 consists of 8 high capacity cells, with 140Wh/9.7Ah high capacity, and support at least 150W/12A constant high load output, for high power cine cameras and lights.

A Little Bigger, Much More Capacity

Comparing with the hot selling SWIT 98Wh Pocket V-mount battery, the new MINO-S140 provides 43% more capacity, but still with tiny size for convenient carrying.

D-tap, USB-A and USB-C

The tiny size MINO-S140 didn't compromize on DC sockets.
D-tap x1 - 120W/10A high load (Support charging input) USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input

USB-C 48W Charging Input

MINO-S140 battery can be charged by USB-C charger, supports PD 5V 2.4A, 9V 2.4A, 12V 2.4A, 15V 2.4A and Max 20V 2.4A, which means you can fully charge the 140Wh battery within 3.5 hours.

USB-C 65W Power Output

You can power laptop via USB-C by MINO-S140 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)

Wire-Free Internal Tech

MINO-S140 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

140Wh, 9.7Ah

Power IN&OUT

Electrodes: 150W 12A out, 16.8V 3A in

D-tap: 120W 10A out, 16.8V 3A in

USB-A: 10W, 5V/2A out

USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A

BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP

Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A

Dimension

105×79×55.5mm (Fit Red Raptor)

      Charging Temperature0-40°C
      Discharging Temperature

-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

Net 713g; With package 0.75kg
Basic Package

MSRP

MSRP

MSRP

  • PB-M98S

    98Wh Pocket V-mount Battery Pack

    Pocket fit tiny V-mount battery, built-in D-tap and USB, 150W load.

  • PC-P430S

    4-ch V-mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

  • S-3822S

    2-ch V-mount Fast Charger

    2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output

  • S-3812S

    2-ch V-mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

  • SC-302S

    2-ch Simultaneous V-mount Charger

    DC16.8V 2A×2 charging, portale style

  • PB-M45S

    45Wh Pocket V-mount Battery Pack

    Pocket fit tiny V-mount battery, built-in D-tap and USB, 150W high load.

  • PC-P460S

    4x6A Super Fast V-mount Charger

    4-ch simultaneous charging with 6A super fast charging current; color LCD screen

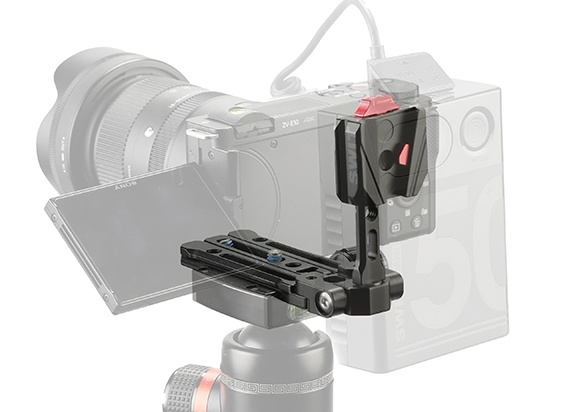

  • TA-T10S
