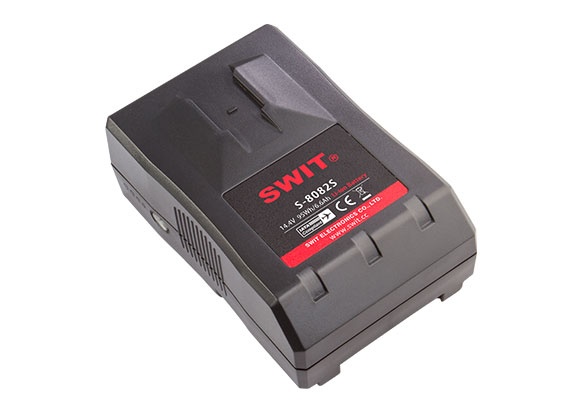

S-8082S 95Wh V-mount Battery Pack

›  Li-ion, 14.4V, 95Wh capacity

›  D-tap output socket

›  4-level LED power indicator

›  V-mount connection

›  Not restricted by IATA

›  Multiple circuit protections


Features

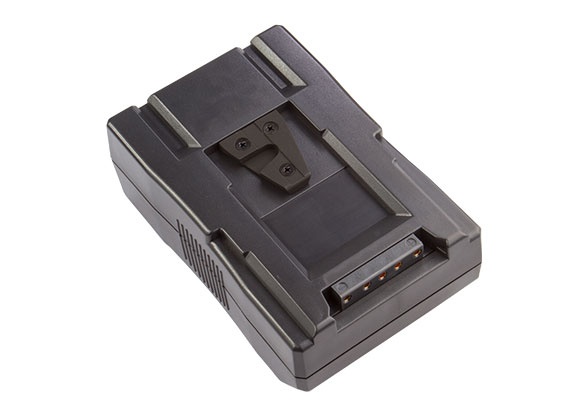

V-mount Camera Battery

S-8082S is the V-mount rechargeable Li-ion battery pack for professional video cameras. It’s compact design, smaller in size.

95Wh / 6.6Ah Capacity

Consists of 12pcs 18650 battery cells, and reaches 95Wh/6.6Ah high capacity.
Run approx 3 hours for normal 30W ENG cameras,and not restricted by IATA air transportation regulations.

Reliable V-mount Connection

S-8082S is the standard V-mount connection and we adopt the high quality fiber glass V-wedge that ensures the reliable mounting.

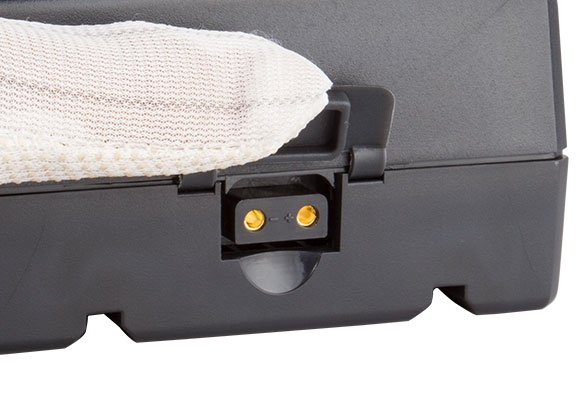

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8082S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

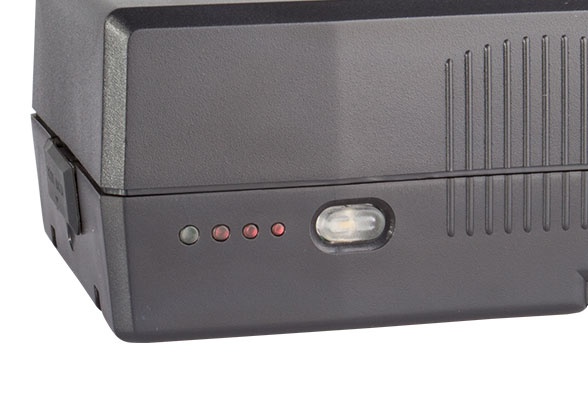

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

无标题文档

Nominal Voltage

14.4V

Capacity

95Wh/6.6Ah

Max output power

In total:150W

Electrodes:150W,12A
D-tap:120W,10A

Mount Type

V-mount

Charging Temperature

0-40°C
      Discharging Temperature-20°C-50°C(Capacity and Max Load may decrease when operating below 0°

Net weight

Net 710g; With package 0.75kg

Dimensions

134×88×52mm
Basic Package

MSRP

MSRP

MSRP

  • PC-P430S

    4-ch V-mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

  • S-3822S

    2-ch V-mount Fast Charger

    2-ch simultaneous charging, 3A fast charging, Portable, support AC-DC adaptor output

  • S-7010S

    V-mount plate with multi-DC out

    V-mount battery plate, with D-tap output, 7.2V pole-tap output and 5V/1A USB output sockets.

  • S-7104

    D-tap to Pole-tap DC Cable

    Pluged into D-tap socket and output DC via 5.5mm pole-tap
