BM-245-NDI 23.8-inch Professional NDI® Monitor

› 23.8-inch 1920×1080 QLED Panel

› 100% DCI-P3 wide color gamut coverage

›  VICO 1.97 A-class Eye Protecting Panel

›  High bandwidth 4K NDI® monitoring

› 3GSDI 2-in 1-loop, HDMI®2.0 input

› NDI® decode to 3GSDI output

› NDI®/SDI/HDMI® PBP or PIP view

› Auto detect and quick select NDI® sources

› Support NDI® Discover Server

› Rec 709 / DCI-P3 / Rec 2020 color gamut selection

› 3DLUT Auto Self-calibration without PC

› Built-in Delog LUTs and User LUTs upload by USB

› Waveform / Vector / Histogram

› Focus assist / False color / Zebra

› 16-ch audio meters / Lissajous pattern

› IP webserver remote control (Future update)

› AC, DC and battery plate power


23.8-inch QLED WCG Panel

FHD, 100% DCI-P3 Coverage

BM-245-NDI monitor adopts a 23.8-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.


BM-245-NDI monitor provides multiple inputs including:
- High bandwidth NDI® up to 4K;
- 3GSDI input×2; Loop out×1
- NDI® decode to 3GSDI out ×1
- HDMI® 2.0 input ×1

NDI® is a registered trademark of Vizrt Group.

NDI® Sources Selection

All NDI® sources will be auto detected when the monitor is connected to NDI® network, and quickly select NDI® sources from a list in monitor menu. The monitor supports Discover Server to pull NDI® sources from different IP segments, and support NDI® low bandwidth mode as well.

PBP / PIP Display Mode

You can select any 2 sources from NDI®, SDI or HDMI® to display simultaneously by Pic-by-Pic mode or Pic-in-Pic mode.

HDR/SDR EOTFs and Color Gamut Selection

BM-245-NDI provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

VICO 1.97 Eye Protect

BM-245-NDI QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.

The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.

Multiple Video Analysis Patterns

Audio Patterns

BM-245-NDI monitor will de-embed
2-ch NDI audios;
8-ch HDMI® audios;
16-ch SDI audios,
display audio meters and Lissajous paterns, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.

Webserver IP Remote Control

BM-245-NDI supports webserver remote control by Ethernet LAN connection.
Use computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without install any APP.

(Available in the future firmware update)

Power Supply

BM-245-NDI consumes 45W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)

LCD Performance


23.8 inches

Display area




Aspect ratio






Color Gamut

100% DCI-P3

Color depth

10bit (8+2FRC)

Eye Protect

VICO 1.97

Viewing angle

178°(H) /178°(V)


RJ45 ×1

High bandwidth 4K NDI®

BNC ×2

3G/HD/SD-SDI input

HDMI® ×1

HDMI® 2.0 input

RS485 ×1

TSL 3.1/4.0 UMD input

RS485 ×1

GPI (Tally) input


BNC ×1

3G/HD/SD-SDI loop output


NDI® decoded to SDI output

RS485 ×1

TSL 3.1/4.0 UMD output

Analog audio

3.5mm headphone and speaker

Video Format


4096×2160p (30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

NDI® decoded to SDI out

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

SDI IN1/2 and LOOP

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576i (50)


4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)


Input voltage

DC 12V-17V, AC 100-240V, 50/60Hz

Power consumption


Working temperature


Working humidity


Storage temperature


Storage humidity




Net weight (main body)

Net 8.87kg; With package 10.55kg
Basic Package

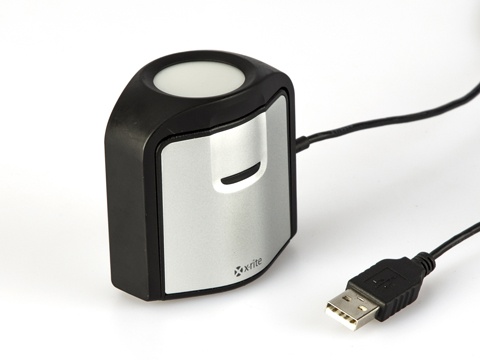

  • X-rite i1 Display

    Colormeter Probe, EODIS3-DCOE, the dedicated OEM version for SWIT monitors
  • BM-U245

    23.8-inch 4K/8K 12GSDI Studio Monitor

    UHD panel, 4x12GSDI (8K), HDMI® 2.0, SFP Fiber, HLG/PQ-HDR, Self Calibration

  • BM-U245HDR

    23.8-inch 4K/8K 12GSDI HDR Studio Monitor

    UHD panel, 1000nits PQ/HLG, 4x12GSDI (8K), HDMI® 2.0, SFP Fiber, Self Calibration

  • BM-H245

    23.8-inch 4K Input Ready Production Monitor

    QLED, 100% DCI-P3 WCG, 12G-SDI, 4x 3G, HDMI® 2.0, Self Calibration

  • BM-215-NDI

    21.5-inch Professional NDI® Monitor

    QLED, 100% DCI-P3 WCG, 4K NDI®, 3GSDI, HDMI®2.0, Auto detect and quick select NDI® sources
