NDI® EFP Production System
EC-N200-4K is the camera adaptor of SWIT NDI® EFP
Multi-camera Production System. The camera adaptor
will encode camera SDI up to 12G to high bandwidth 4K
NDI®, and also decode PGM NDI® source to display as
return video. The system has on-board and external
TALLY light and support full duplex intercom between
cameramen and director.
Full Duplex Intercom
The camera adaptor EC-N200-4K
supports 5-pin headset connection, and
working together with SWIT ET-N80
Intercom control panel, the system
supports full duplex intercom between
director and cameramen. You can
control intercom volume and initiate the
call to director on the camera adaptor.
Interfaces
The EC-N200-4K camera adaptor supports up
to 12G-SDI input and loop out, high bandwidth
4K NDI® connected to the network, and HDMI®
monitor output for local video and return video.
The camera adaptor provides 5-pin XLR headset
connector and 3.5mm jack for external TALLY
light, powered by V-mount or Gold mount, or
through 5.5mm DC-IN, or powered by PoE.
TALLY Lights
There’ s an on-board bi-color TALLY light to
display Red (PGM); Green (PVW). The package

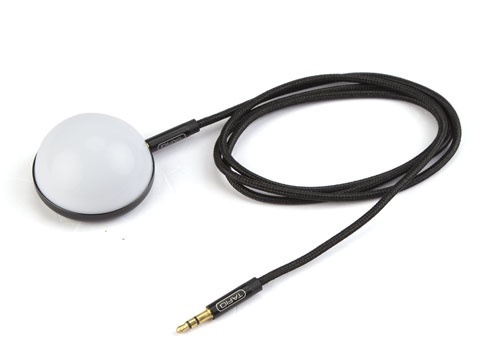

also provides an external TALLY light to install
on the front of the camera, for the anchor.
Return NDI® Video Switch
The camera adaptor also decode the PGM NDI® source
and output through HDMI®. You can use any monitors
with HDMI® to display local video and return video in
Pic-in-Pic mode, or full screen return video mode, by
press the Return button on the camera adaptor.
RJ45 Cable Clamp
The camera adaptor provides a clamp to fix any
standard RJ45 cables, which ensure the reliability
of connection during video productions.
15mm Rod System
The EC-N200-4K camera adaptor package provides the 15mm Rod system to
install between camera and tripod. The Rod system is universally compatible with
all kinds of ENG cameras and video tripods, and easy to install.
System Diagram
Video Input | 12G/6G/3G/HD/SD-SDI ×1 |
Video Output | 12G/6G/3G/HD/SD-SDI ×1 HDMI® ×1 High bandwidth NDI ×1 |
SDI Format | 2160p (60/50/30/29.97/25/23.98); 1080p (60/59.94/50/30/29.97/25/23.98); 1080i (60/59.94/50); 720p (60/59.94/50) |
NDI Format | 2160p (60/50/30/29.97/25) 1080p (60/59.94/50/30/29.97/25) 1080i (60/59.94/50) 720p (60/59.94/50) |
HDMI® Format | 1080p (60/59.94/50/30/29.97/25/23.98); 1080i (60/59.94/50) 720p (60/59.94/50) |
NDI Bandwidth | 1080p 150Mbps - 200Mbps 2160p 250Mbps - 300Mbps |
NDI Codec Latency | 60ms |
DC/Battery Input | 11-17V, 1.5A |
DC output | 14.4V D-tap×1 8.4V(Reg) 3A Pole-tap×1 |
PoE Power Input | 42-57V, 0.5A |
Power Consumption | 16W |
| Working Temperature | 0-40°C |
| Dimension | 139.23×176×52.5mm |
Net weight | 742g |
MSRP
MSRP
MSRP
-
5-pin single ear headset
-
15mm rods rail with camera base
-
15mm rail clamp (Pre-installed)
-
External Tally Light with cable and codeshoe
-
RJ45 network cable fixer (Pre-installed)
-
D-tap to 5.1/2.1mm DC cable
-
Carrying case
