PL-E60P 60W IP54 waterproof SMD Panel LED Light

›  320pcs edge mounted SMD-LEDs

›  Unique 90° light guide technology

›  IP54 water/dust proof

›  60W power, 1500Lux @ 1meter

›  0-100% flick-free dimming

›  70° effective wide beam angle

›  2700K-6500K continuously adjustable

›  Super high CRI Ra 98, TLCI 99

›  LCD display color, dimmer and battery info

›  DC 11-36V wide input voltage

›  Power by V-mount / Gold mount battery

›  DMX512 control and Interaction control

›  Strong all-metal housing with U-stand

›  Provide portable 3-light kit

›  Optional 4-leaf barn door and 40° honeycomb


Features

IP54 Rainproof Panel Light

PL-E60P is an advanced version of PL-E60D, with additional IP54 rainproof structure. The light can work in the rain at any angle without external protections, and provide IP54 rainproof V-mount batteries to work together.


320pcs Edge Mounted LEDs

Super thin, area light, soft and glareless

PL-E60P is specially designed for field portable lighting applications. 320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60P can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

Laser Dots 90° Light Guide

High efficiency and super bright

The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.
SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.


1500 Lux @ 1 meter

0-100% flick-free dimming

PL-E60P outputs 60W power, feeds 1500Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E60P also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-color Temperature

2700K-6500K continuously adjustable

PL-E60P alternated with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between 2700K and 6500K.

High Color Render Index

CRI Ra 98; TLCI 99

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while PL-E60P offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colors.

LCD Screen Display

Dimmer / color / DMX channel, battery info

The rear LCD screen can display the current dimmer percentage, color temperature value, DMX channel and CH channel, and remaining battery indications.

DMX512 control

Dimmer and Color temperature

PL-E60P adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.
Press and hold dimmer knob for 2 seconds to enter communication address setting interface, the address setting range is 001 to 512.

Quick Adjust Mode

By pressing the adjusting knob

PL-E60P supports quick adjusting brightness and color temperature: Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness; Press Color temperature knob, it will switch from 50K stepping to the following commonly used color temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

Interaction Control Mode

Control the lights each other without a DMX consoler

Press and hold color temperature adjusting knob for around 2 seconds, the upper left corner of LCD shows "CH" indicating that the communication control mode currently is interaction control mode. In this mode, set the target lights to the same communication address to work normally, and the master slave machine is not distinguished.
Press and hold dimmer knob for 2 seconds to enter communi- cation address setting interface, the address setting range is 001 to 512.



Interaction Control Mode Demonstration

Connected by DMX cables

For example, operate any of the CH 001 light, all the other CH 001 lights can be controlled together. Max 512 CH addresses can be set.

11-36V Wide Input Voltage

By V-mount/Gold mount battery or 4-pin XLR

PL-E60P supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries. (The default battery plate is V-mount.)

Barn Door / Honeycomb

Optional purchase, Easy to assemble

PL-E60P has all-metal housing, and provides the 4-leaf metal barn door and 40° metal honeycomb accessories, easy to assemble. Barn door (Model # LA-HE60) and Honeycomb (Model # LA-GE60) are optional purchased.

LED

320pcs SMD LEDs

illuminance

1500Lux @ 1m

Beam angle

70°(50% bounded)

Color Temperature

2700K~6500K

Color render

CRI 98; TLCI 99

IP class

IP54

Power

Approx. 60W

Working voltage

DC11V~36V

Dimension

382×403×48mm

Lighting area

257×257mm

weight

Net 3.2kg; With package 7kg
Basic Package

Single Light Package

MSRP

3-Light Kit Package

MSRP

MSRP

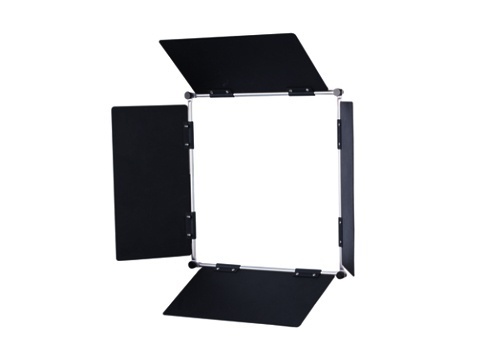

  • LA-HE60

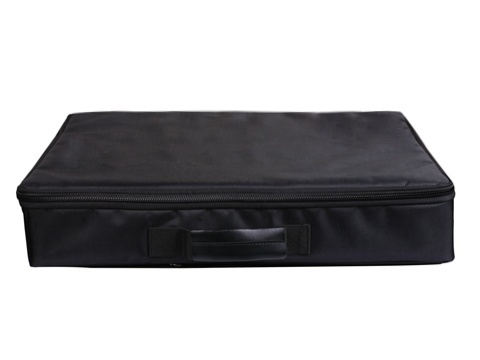

  • Bag

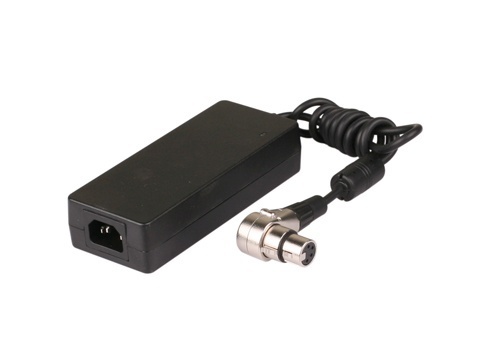

  • AC-DC Adaptor

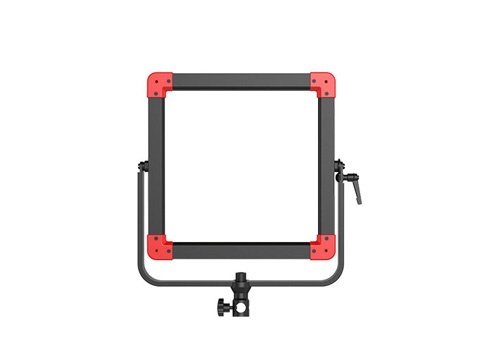

  • PL-E60P Light

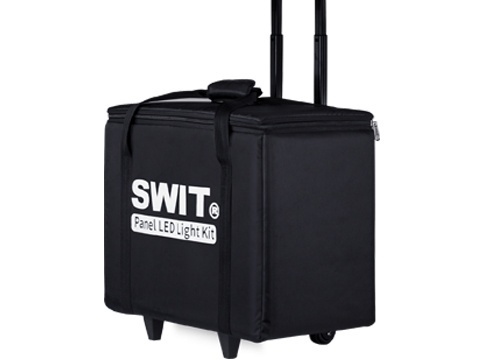

  • Trolley Case

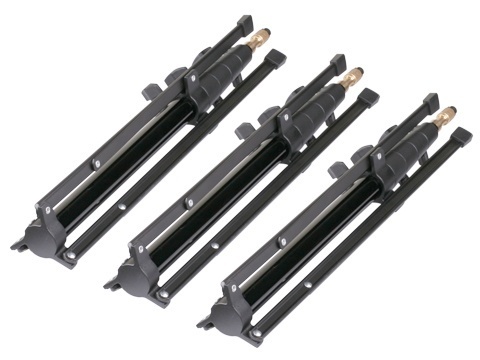

  • Light Stand x3

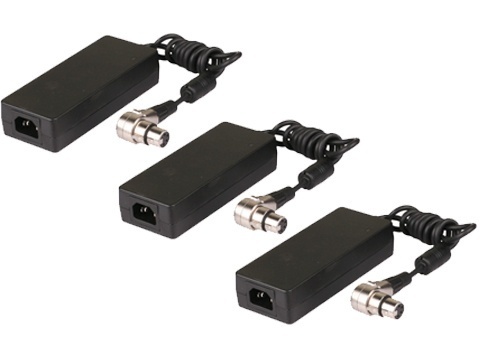

  • AC-DC Adaptor x3

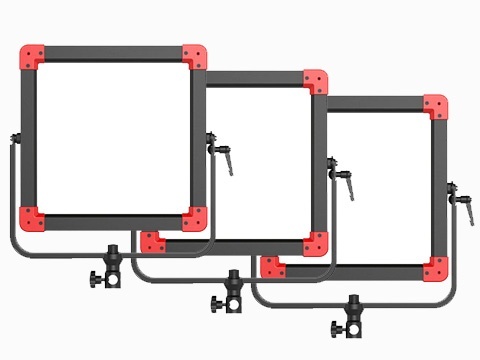

  • PL-E60P Light x3

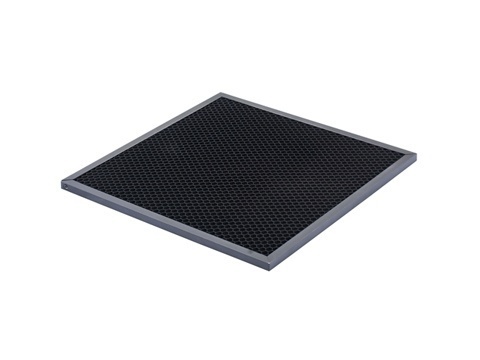

  • LA-GE60

    Honeycomb 40°, metal, Directly attached to the front frame of the light Light weight and easy to remove
  • LA-GE60N

    Metal 40° Honeycomb, could be installed together with barndoor kit.
  • PL-E60

    60W Portable Bi-color SMD Panel LED light

    320pcs bright SMD LEDs, equally spread surface light, 60W, 1500Lux@1m bright, 2700K-6500K adjustable, Super thin and portable.

  • PL-E90D

    90W Portable Bi-color SMD Panel LED light

    480pcs bright SMD LEDs, 90W, DMX control, 2200Lux@1m bright, 2700K-6500K adjustable, Super thin and portable.

  • PL-E60D

    60W Portable Bi-color SMD Panel LED Light

    320pcs bright SMD LEDs,DMX control, equally spread surface light, 60W, 1500Lux@1m bright, 2700K-6500K adjustable,DMX control, Super thin and portable.

  • PL-E90

    90W Portable Bi-color SMD Panel LED light

    480pcs bright SMD LEDs, equally spread surface light, 90W, 2200Lux@1m bright, 2700K-6500K adjustable, Super thin and portable.

  • FL-C60D

    60W Bi-color Portable LED Spot Light

    25000Lux super bright, 15°-60° beam angle, 2700K-8000K adjust, Super high CRI 95, TLCI 97, silent mode, DMX control

  • PL-E90P

    90W IP54 waterproof SMD Panel LED Light

    480pcs SMD LEDs, DMX control, 2200Lux@1m bright, 2700K-6500K
